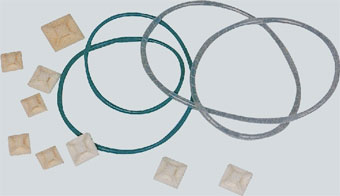

| Cable clips & set piece series | |
|  |

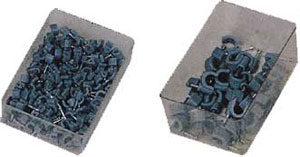

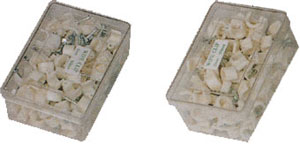

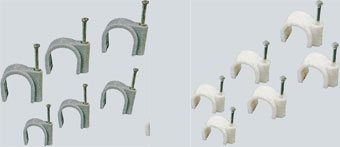

| CABLE CLIPS(FLAT) 4mm,5mrn,6rnm,Tmm 6mm,grnrn,10mrn, 12rnm,14rnm | CABLE CLIPS(ROUND) 4mm,5rnm.6mm,7mm,Bmm,gmrn,10mm,12mm.14mm 16ram, 18mrn,20m m,22rnrn,25mrn,30rnm,32 mm,35m m=4Omm |
 |  |

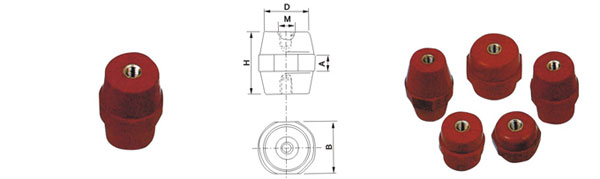

Busbar insulators | |
| TYPE | Rated voltage{V) | Test voltage(kV) | H(mm) | M{mm) | Din.m) | B(mm) | Weight(g) | |
| SM25 | 1 O00 | 5 | 25 | 6 | 24 | 26.5 | 28 | |
| SM30 | 1000 | 5 | 30 | 8 | 27 | 32.4 | 44 | |
| SM35 | 1000 | 5 | 35 | 8 | 28 | 31,9 | 50 | |
| SM40 | 1000 | 5 | 4O | 8 | 34 | 40.1 | B6 | |
| SM51 | 1000 | 5 | 51 | 8 | 29 | 35.3 | 83 | |
| SM76 | 1000 | 5 | 76 | 10 | 35 | 49.8 | 233 |
