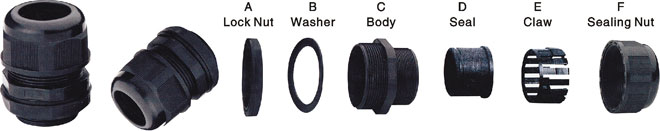

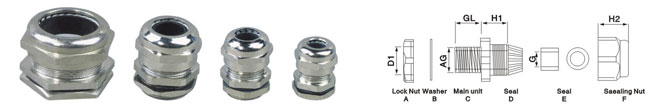

| MG Cable gland with locknut | ||||||||
| Threaded entry metric | Cable rangeΦ | O.D.C1 | Panel mounting Hole | Thread length C2 | Scaling nutsize F | Lock nutsize A | Category Black | No grey |
|---|---|---|---|---|---|---|---|---|
| M12X125 | 7.6-4.6 | 12 | 12.5 | 8.5 | 19 | 18 | MG 12-08B | MG 12-08G |
| M16X1,5 | 10-6 | 16 | 16.5 | 15 | 22 | 22 | MG16-t0B | MG16-10G |
| M20X1,5 | 14-9 | 20 | 20.5 | 15 | 27 | 27 | MG20-14B | MG20-14G |
| M25X1,5 | 18-13 | 25 | 25.5 | 15 | 33 | 33 | MG25-18B | MG25-18G |
| M32X1,g | 25-18 | 32 | 33 | 15 | 41 | 41 | MG32-25B | MG32-25G |
| M40x1,5 | 30-24 | 40 | 41 | 20 | 50 | 50 | MG40-30B | MG40-30G |
| Mg0x1,5 | 39-30 | 50 | 51 | 22 | 62 | 61 | MG50-39B | MG50-39G |
| M63x1,S | 48,5-40 | 63 | 64 | 25 | 75 | 75 | MG63-49B | MG63-49G |

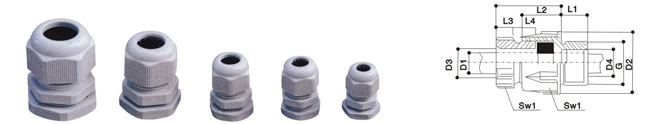

| PG cable gland | |||||||||||
| Type | Sealing Area D1 mmm | D2 mm | D3 mm | D4 mm | SWl Key Size | SW2 Key Size | L1 mm | L2 mm | L31 mm | L4 mm | Lmax mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PG7 | 3-5-6-5 | 16.5 | 7 | 7 | 15 | 13 | 5 | 13 | 5 | 8-5 | 23 |
| PG9 | 4.5-7 | 21.5 | 10,2 | 10,2 | 19 | 16 | 8 | 14 | 5 | 9 | 25 |
| GP11 | 5,5-10 | 25 | 11,3 | 11,5 | 22 | 19 | 8 | 15 | 5 | 10 | 27 |
| PG13,5 | 9-13 | 27 | 11,4 | 13,5 | 24 | 21 | 9 | 16 | 5 | 10,8 | 28 |
| PG16 | 10-14 | 30 | 15,8 | 16,5 | 27 | 23 | 10 | 16,5 | 5 | 12 | 30 |
| PG21 | 14-18 | 37,5 | 21,2 | 21 | 33 | 30 | 11 | 19 | 6 | 17 | 38 |
| PG29 | 18-25 | 47.5 | 30 | 27.5 | 42 | 40 | 11 | 20,5 | '7 | 18 | 42 |
| PG36 | 25-33 | 58 | 48 | 34.5 | 53 | 50 | 12 | 24 | 8 | 1'7 | 43 |
| PG42 | 30-38 | 65 | 44,5 | 40,5 | 60 | 55 | 13 | 27 | 9 | 18.5 | 48 |
| PG48 | 37-44 | 70 | 50 | 45,5 | 65 | 65 | 14 | 27 | 9 | 18,5 | 46 |

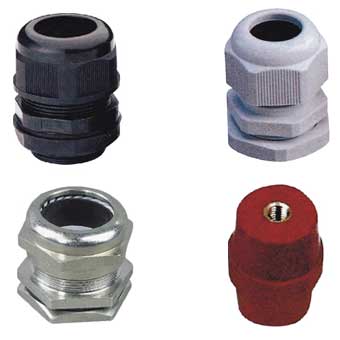

Cable gland
