Fuse holder for cylindrical fuse link
ST type fuse holder
Rated voltage:220V AC 380V AC 500V AC Rated Current:up to 100A Standard specifications:
EC 269.1EC 63211

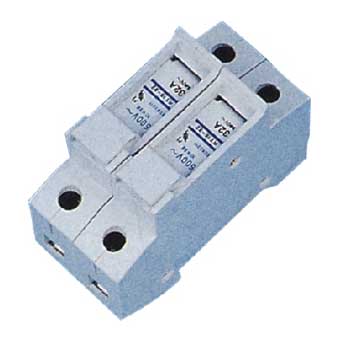

RT18L type fuse holder
RT18L Series Fuse Disconnector (Fuse Holders)are desiged for working under a rated
voltage up to 690V AC,50Hz,the rated current is up to 125A.RT18L-63A is suitable for fuse
linksizes ,ф14x51 and RT18L-125A for ,ф22 x 58.The products comply with GB14048.3/GB13539
and IEC947.3/IEC269.They are widely used for protection against overload and
short circuit or power main disconnecting.
The safety locke ring of RT18L Series assyres rekuavke disconnecting.They can also easily
be assembled into multi-pole type by linking them together with simply some conecting pins.
ST type fuse holder
Rated voltage:220V AC 380V AC 500V AC Rated Current:up to 100A Standard specifications:
EC 269.1EC 63211
RT18L type fuse holder
RT18L Series Fuse Disconnector (Fuse Holders)are desiged for working under a rated
voltage up to 690V AC,50Hz,the rated current is up to 125A.RT18L-63A is suitable for fuse
linksizes ,ф14x51 and RT18L-125A for ,ф22 x 58.The products comply with GB14048.3/GB13539
and IEC947.3/IEC269.They are widely used for protection against overload and
short circuit or power main disconnecting.
The safety locke ring of RT18L Series assyres rekuavke disconnecting.They can also easily
be assembled into multi-pole type by linking them together with simply some conecting pins.
