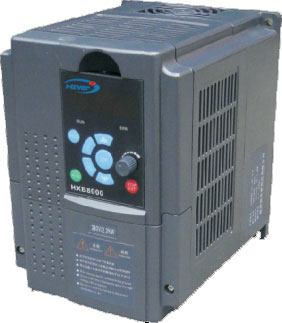

| Type | Rated Power | Overload Current | Rated Current | Input Ampere |
| ZGRE-B220004G | 0.4KW | 2.5A | 5A | Single phase 220V Three phase 380V |
| ZGRE-B220007G | 0.75KW | 5A | 10A | |
| ZGRE-B220015G | 1.5KW | 7A | 14A | |
| ZGRE-B220022G | 2.2KW | 11A | 22A |
| Type | L | W | H | L1 | W1 | Ф | G. W.(kg) |
| ZGRE-B220004G ZGRE-B220007G ZGRE-B220015G ZGRE-B220022G | 153 153 153 153 | 100 100 100 100 | 117 117 117 117 | 140 140 140 140 | 88 88 88 88 | 5 5 5 5 | 1.2 1.2 1.2 1.2 |
F2 Input Output and Function Data
| F200 F201 F202 F203 F204 F216 F220 F224 F228 F232 F236 F240 F244 F245 F246 F247 F248 F249 F250 F251 | Control Model X1 Terminal Function X2 Terminal Function X3 Terminal Function X4 Terminal Function Mutil-step Speed Frequency 1 Mutil-step Speed Frequency 2 Mutil-step Speed Frequency 3 Mutil-step Speed Frequency 4 Mutil-step Speed Frequency 5 Mutil-step Speed Frequency 6 Mutil-step Speed Frequency 7 Mutil-step Speed Frequency 8 Mutil-step Speed Frequency 9 Mutil-step Speed Frequency 10 Mutil-step Speed Frequency 11 Mutil-step Speed Frequency 12 Mutil-step Speed Frequency 13 Mutil-step Speed Frequency 14 Mutil-step Speed Frequency 15 | 0:General 1: 1:Mutil-step Speed Terminal 1 2:Mutil-step Speed Terminal 2 3:Mutil-step Speed Terminal 3 4:Mutil-step Speed Terminal 4 Jog 17 5.00HZ 8.00HZ 11.00HZ 14.00HZ 16.00HZ 19.00HZ 22.00HZ 26.00HZ 29.00HZ 32.00HZ 36.00HZ 39.00HZ 43.00HZ 46.00HZ 50.00HZ Model |
