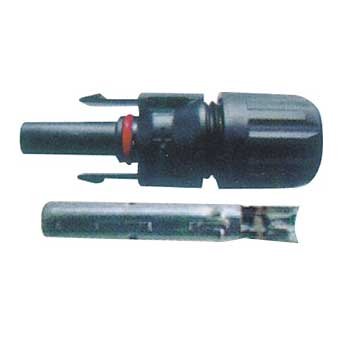

Solar connector
Solar cable
YF-1000
1. Voltage:8KV
2. restrictive coating thickness:0.8MM
3. Dia.of pin or socket:2.5mm2
4. Operating Temperature:-40℃-+120℃
5. Protection Class:Class II
6. Protection degree(mated/unmated. :l P65
7. Rated Link Spec: 2.5mm2
8}conductor resistance:3.18 Ω/KM
9. maximum temperature:200℃
YF-1001
1. Voltage:8KV
2. restrictive coating thickness:0.7MM
3. Dia.of pin or socket:3mm2/4mm2
4. Operating Temperature:-40℃-+120℃
5. Protection Class:Class II
6. Protection degree(mated/unmated. :l P65
7. Rated Link Spec: 4mm2
8. conductor resistance:5.09 Ω/KM
9. maximum temperature:200℃
YF-1002
1. Voltage:8KV
2. restrictive coating thickness:0.9MM
3. Dia.of pin or socket:6mm2
4. Operating Temperature:-40℃~+40℃
5. Protection Class:Class II
6. Protection degree(mated/unmated. :l P65
7. Rated Link Spec: 6mm2
8. conductor resistance:7.63 Ω/KM
9. maximum temperature:200℃
Solar cable
YF-1000
1. Voltage:8KV
2. restrictive coating thickness:0.8MM
3. Dia.of pin or socket:2.5mm2
4. Operating Temperature:-40℃-+120℃
5. Protection Class:Class II
6. Protection degree(mated/unmated. :l P65
7. Rated Link Spec: 2.5mm2
8}conductor resistance:3.18 Ω/KM
9. maximum temperature:200℃
YF-1001
1. Voltage:8KV
2. restrictive coating thickness:0.7MM
3. Dia.of pin or socket:3mm2/4mm2
4. Operating Temperature:-40℃-+120℃
5. Protection Class:Class II
6. Protection degree(mated/unmated. :l P65
7. Rated Link Spec: 4mm2
8. conductor resistance:5.09 Ω/KM
9. maximum temperature:200℃
YF-1002
1. Voltage:8KV
2. restrictive coating thickness:0.9MM
3. Dia.of pin or socket:6mm2
4. Operating Temperature:-40℃~+40℃
5. Protection Class:Class II
6. Protection degree(mated/unmated. :l P65
7. Rated Link Spec: 6mm2
8. conductor resistance:7.63 Ω/KM
9. maximum temperature:200℃
