Product Description
Limit switches are ideal electrical control switches in mechanical and other industries.
They have features of complete specifications and varieties of types , nice appearance, excellent performance, flexible and reliable action, easy installation, operation, maintenance and adjustment.
The switches are applicable to AC control circuits of 40 to 60Hz, with a voltage up to 500V or DC control circuits with a voltage up to 660V, and a current up to 10A to convert a mechanical signal into an electrical signal for the purpose of controlling mechanical movement or performing sequential control.

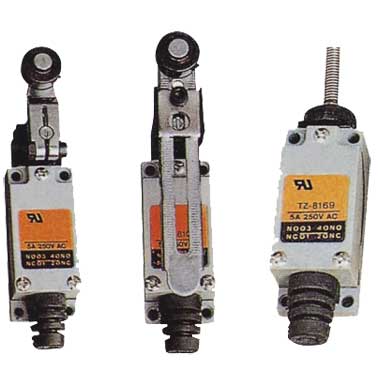

TZ limit switch Features
Double circuit type of limit switch
Highly rigid construction, consists of intensive plastic and aluminum cast (Head and cover snugly fit in box)
Small volume, water-proof and oil-proof construction
Built-in basic switch with double spring mechanism, longer mechanical life
Smooth operation with greater OT
Easy-to-wire circuit opening design
Wide varity of actuators, easily use.

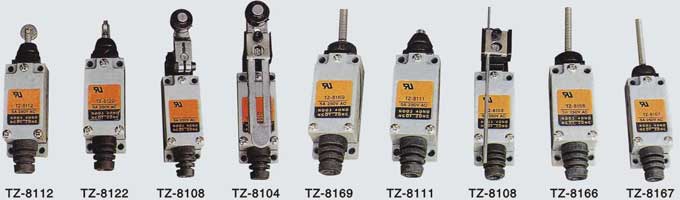

Type: TZ-8112 TZ-8122 TZ-8108 TZ-8104 TZ-8169 TZ-8111 TZ-8108 TZ-8166 TZ-6167
