Product Description
Limiting switches are ideal electrical and other industries.
They have complete specifications and various types, compact structure, nice appearance, excellent performance, flexible and reliable action, easy installation, operation, maintenance and adjustment.
The switches are applicable to AC control circuits of 40 to 60Hz, with a voltage up to 500V or DC control circuits with a voltage up to 660V, and a current up to 10A to convert a mechanical signal into an electrical signal for the purpose of controlling mechanical movement or performing sequential control.
ME Limit Switch Characteristics
1. Operation speed: 0.5mm-50cm/sec
2. Action frequency: Mechanically: 120times/min Electically: 30 times/min
3. Contact resistance: 25mΩ(mm)(initial)
4. Insulation resistance: 100MΩ below (at 500VDC)
5. Bearing voltage: 1, 000VAC-1, 500VAC, 50/60Hz for one minute
6. Vibration: 10-55Hz, 1.5mm pairs swing
7. Hitting: Mechanic: 1, 000m/Sec2 (about 100G'S)
8. Surrounding temperature: -5 to +65
9. Humidity: 95% RH above
10. Life time: Mechanical: 10, 000, 000 times above Electrical: 500, 000 times above
11. Protection grade: IP65

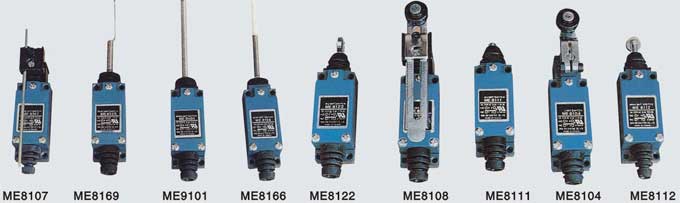

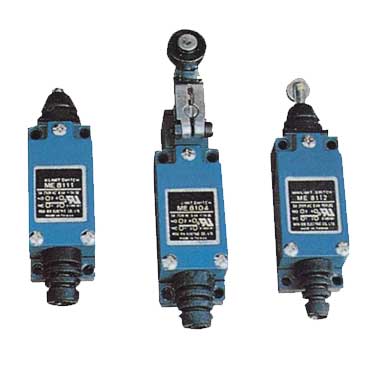

Type: ME8107 ME8169 ME9101 ME8166 ME8122 ME8108 ME8111 ME8104 ME8112
Limiting switches are ideal electrical and other industries.
They have complete specifications and various types, compact structure, nice appearance, excellent performance, flexible and reliable action, easy installation, operation, maintenance and adjustment.
The switches are applicable to AC control circuits of 40 to 60Hz, with a voltage up to 500V or DC control circuits with a voltage up to 660V, and a current up to 10A to convert a mechanical signal into an electrical signal for the purpose of controlling mechanical movement or performing sequential control.
ME Limit Switch Characteristics
1. Operation speed: 0.5mm-50cm/sec
2. Action frequency: Mechanically: 120times/min Electically: 30 times/min
3. Contact resistance: 25mΩ(mm)(initial)
4. Insulation resistance: 100MΩ below (at 500VDC)
5. Bearing voltage: 1, 000VAC-1, 500VAC, 50/60Hz for one minute
6. Vibration: 10-55Hz, 1.5mm pairs swing
7. Hitting: Mechanic: 1, 000m/Sec2 (about 100G'S)
8. Surrounding temperature: -5 to +65
9. Humidity: 95% RH above
10. Life time: Mechanical: 10, 000, 000 times above Electrical: 500, 000 times above
11. Protection grade: IP65
Type: ME8107 ME8169 ME9101 ME8166 ME8122 ME8108 ME8111 ME8104 ME8112
